Bildgallerie Vorb. PC-Steuerung

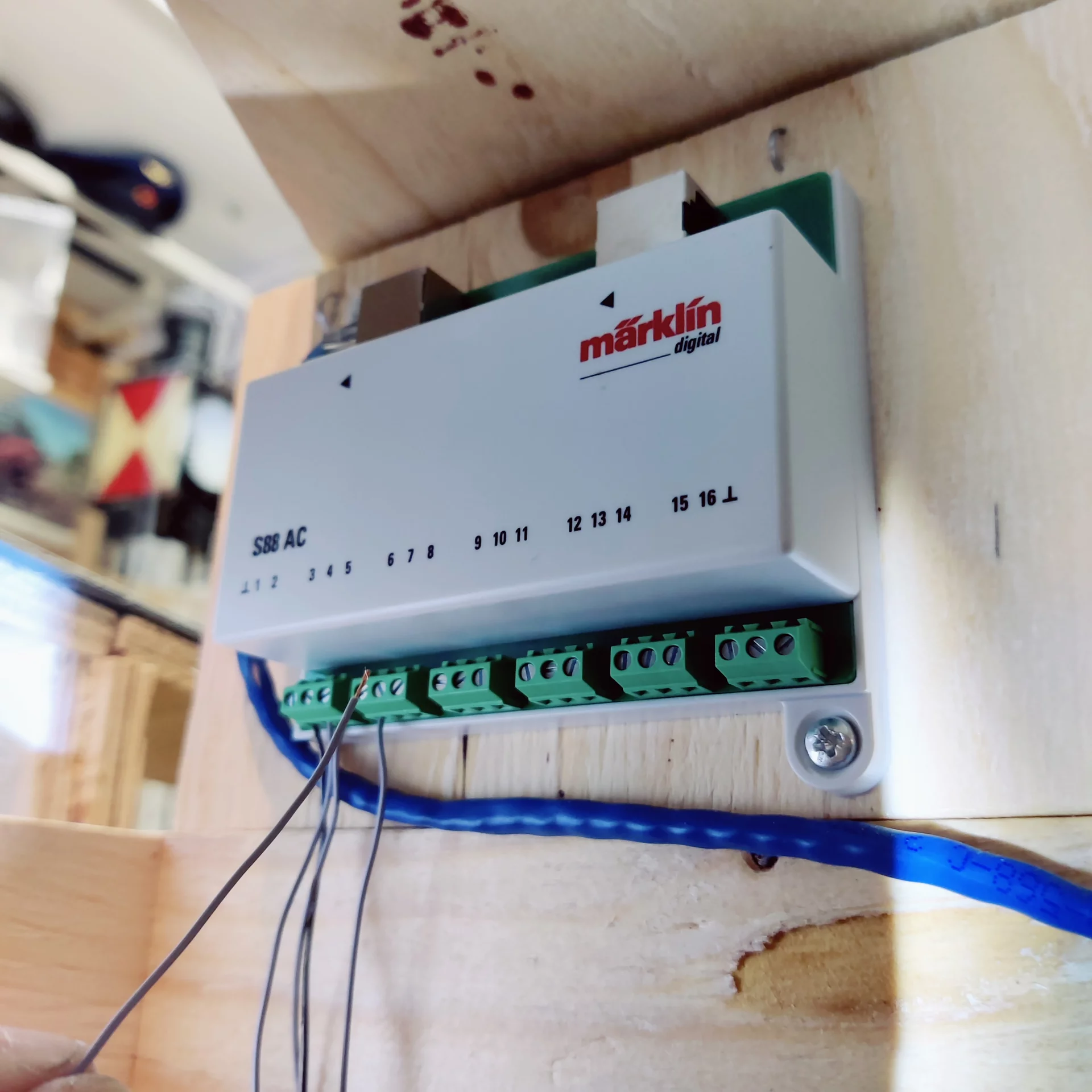

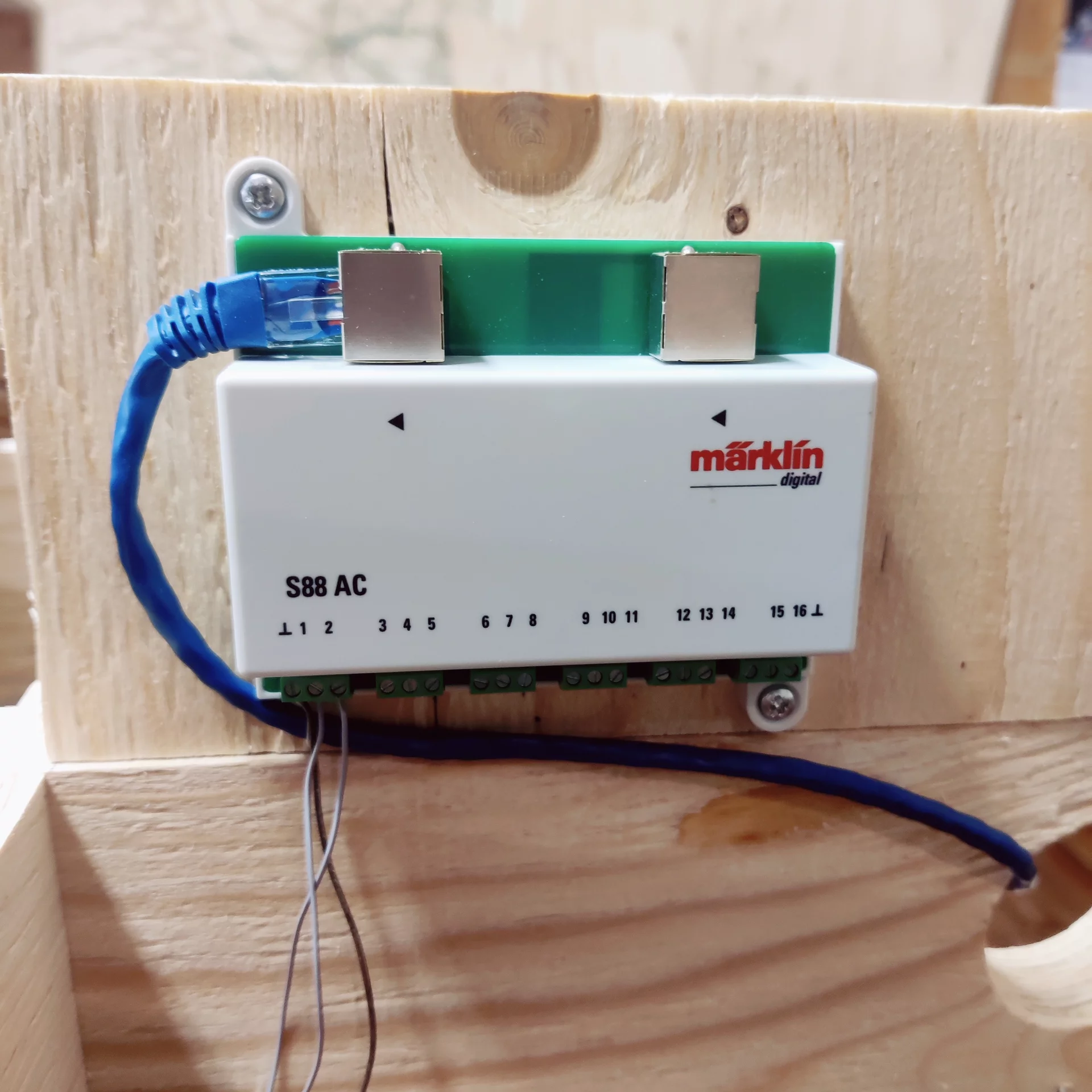

  • A Märklin feedback module to connect defined track sections with the central station.

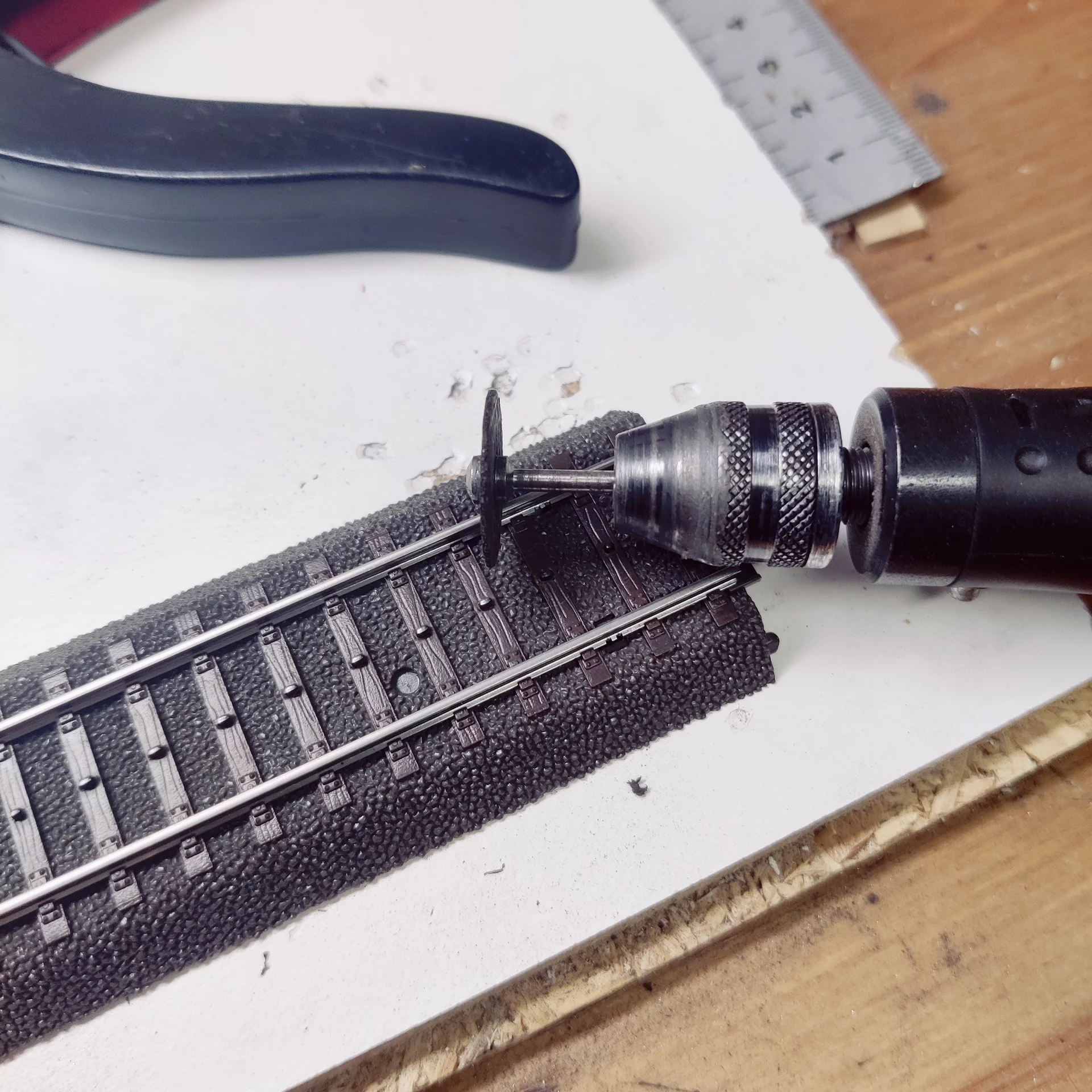

  • Preparing tracks to install feedback sections

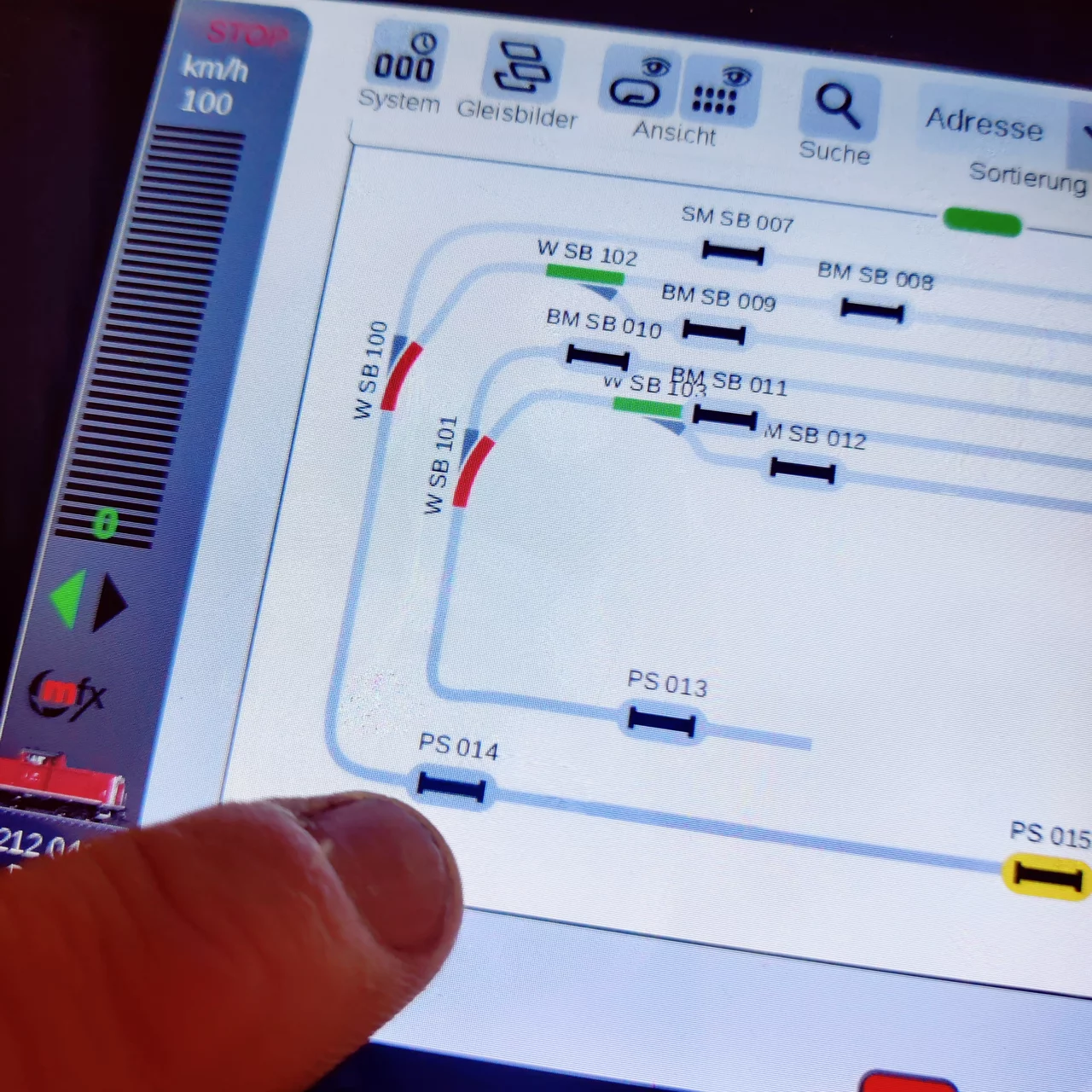

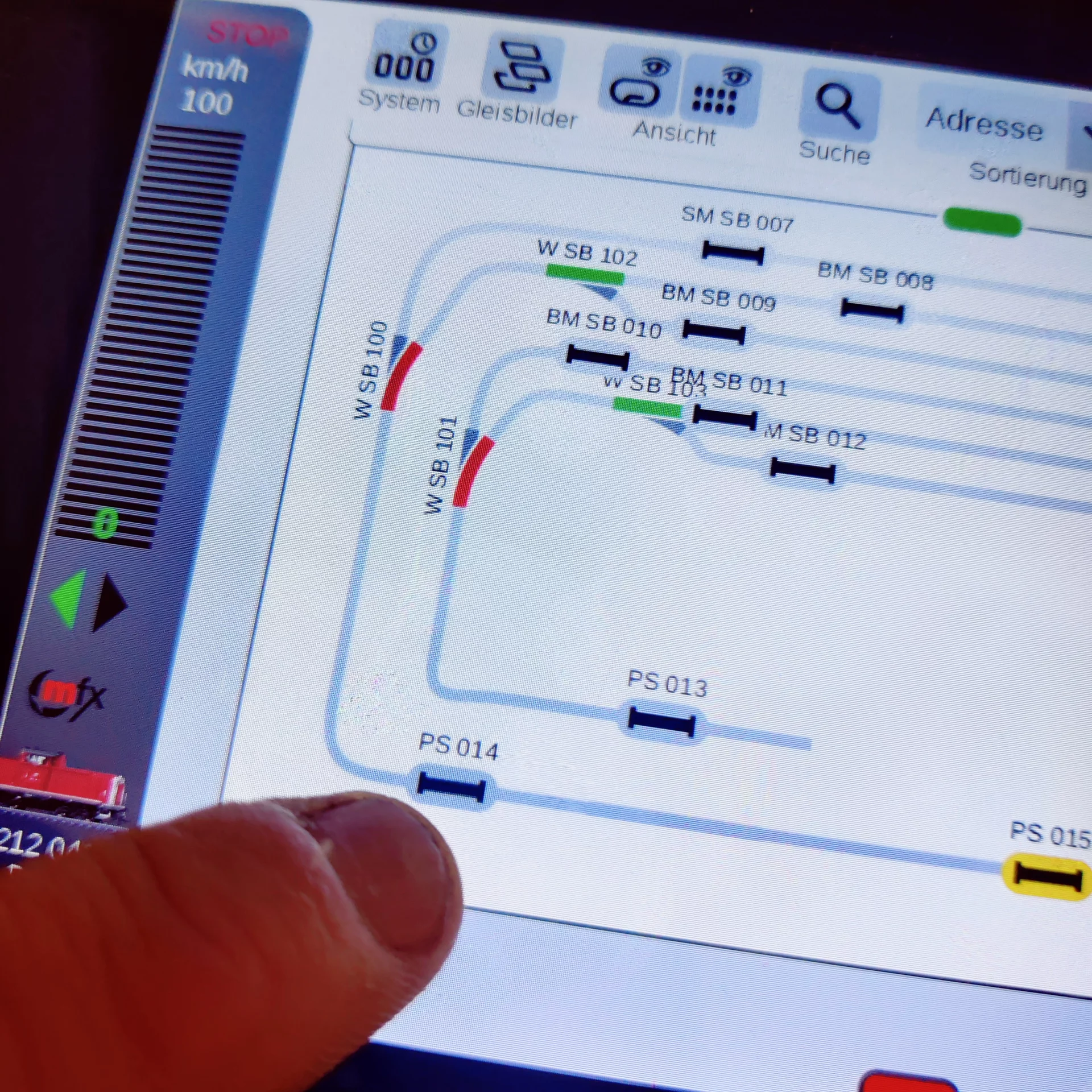

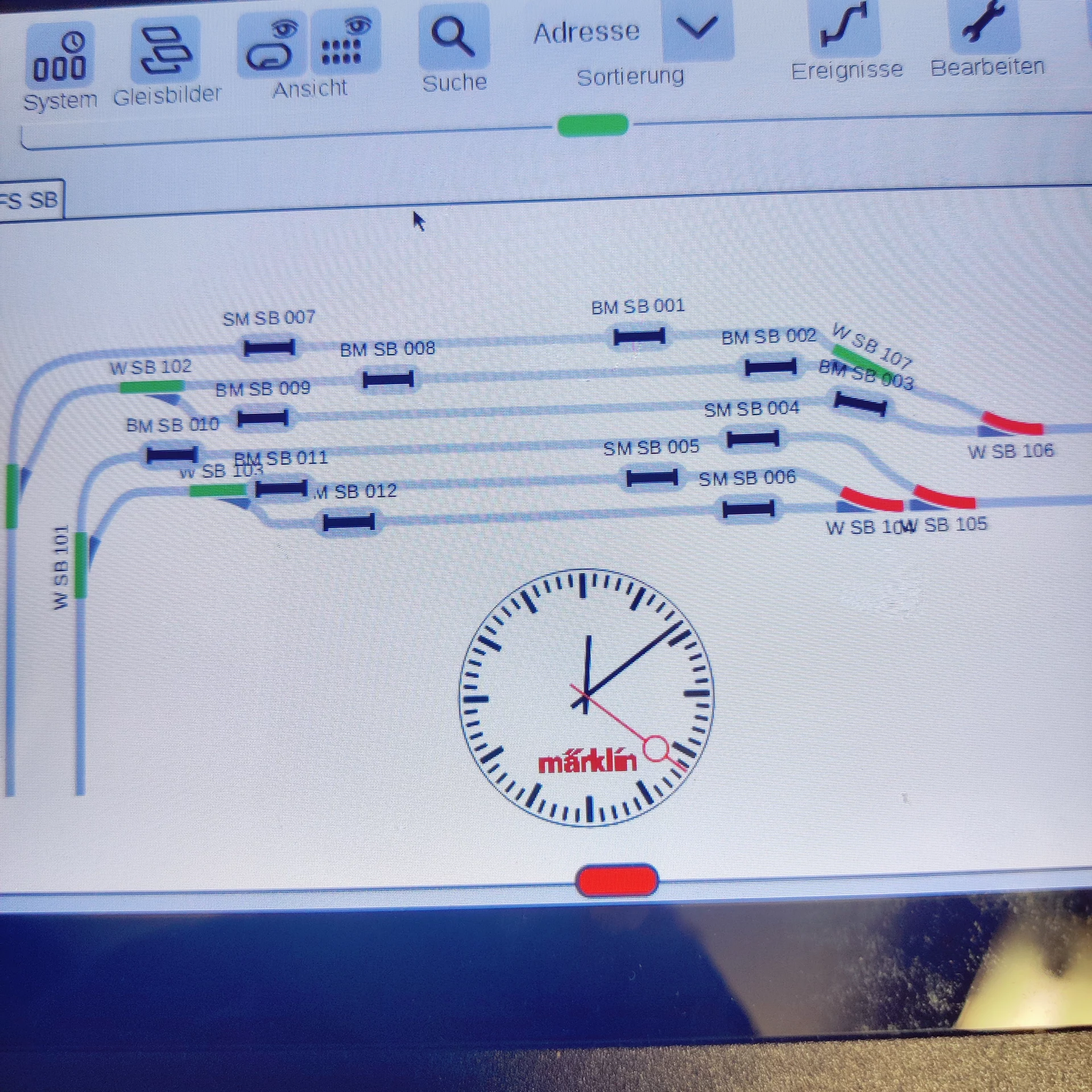

  • The yellow light indicates the occupancy by a vehicle

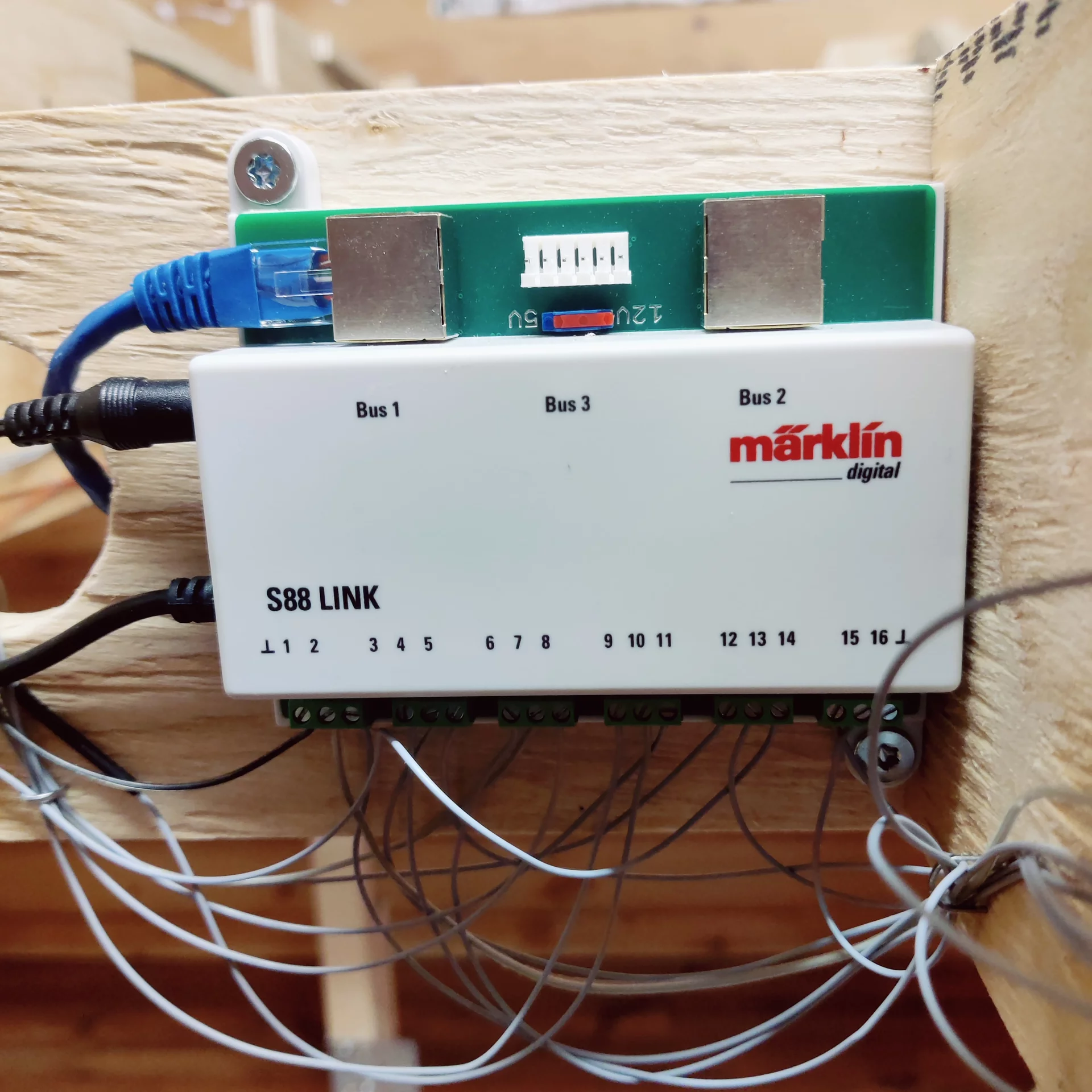

  • The feedback module connects with a RJ45 - bus to the central station CS3+

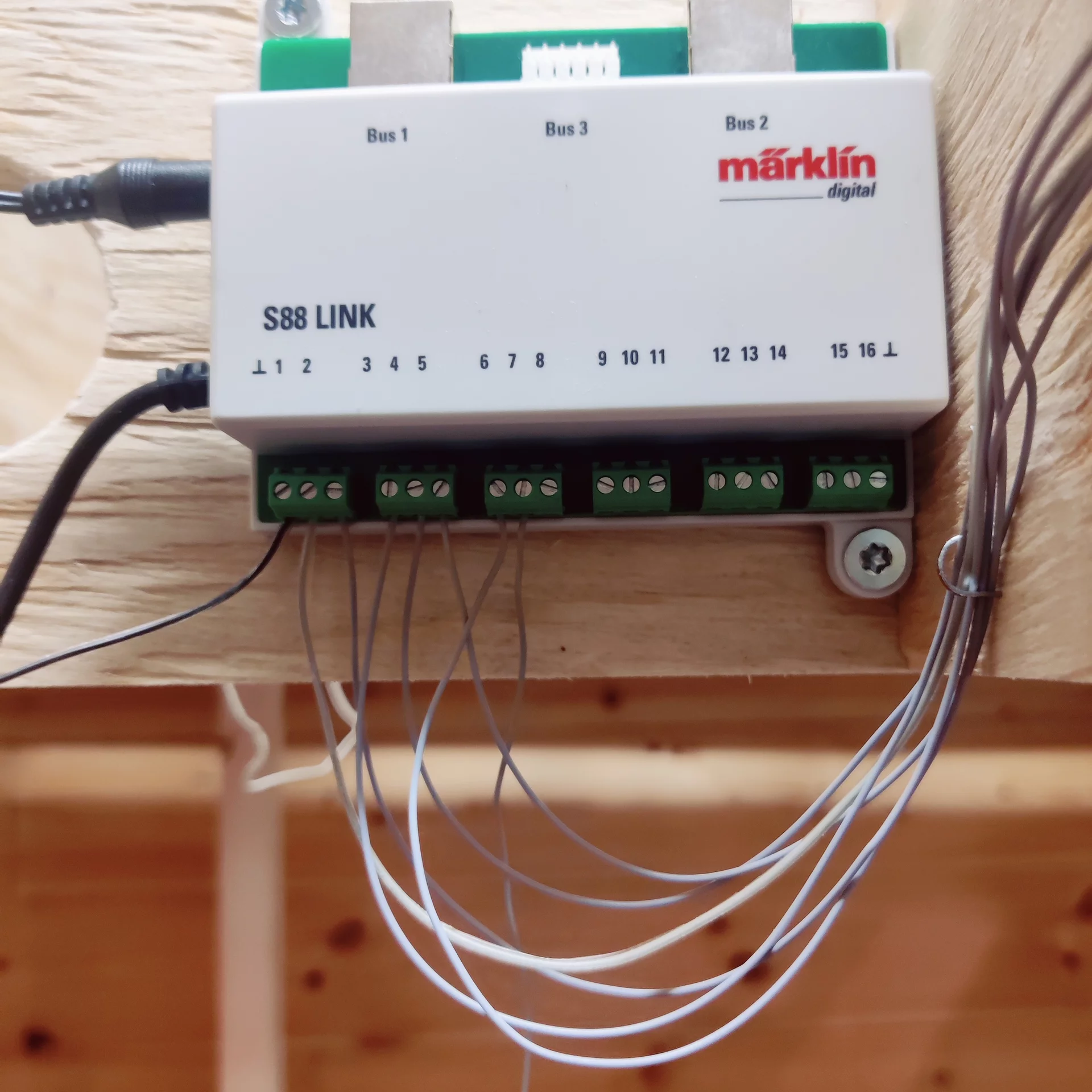

  • The wiring is demanding patience and repeated testing
  • Preparing special wire contacts
  • In total 3 such modules are installed to deal with the number of feedback sections in my layout
